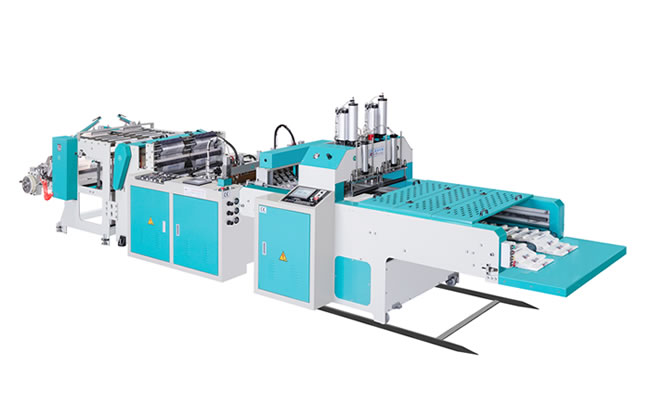

XJBXJ-400X2SVT/500X2SVT High Speed Fully Biodegradable T-shirt Bag Making Machine
Servo Motor Feeder
This machine adopted a servo motor feeder in order to assure an accurate length of bag. Thus the user has no troubles in affecting the length of bag due to maintenance and mechanic damages
Auto Feeder
This machine adopted an auto feeder connected to the mater motor and can coordinate with it in speed. It can be automatically adjusted. It needs no manual adjustment. It can coordinate the expansion controller to reduce the fatigue of the feeder in order to keep the pulling force of the plastic bag
Main Technical Parameters
Model: XJBXJ-400x2SVT / XJBXJ-500x2SVT
Sealing-cutting Width Max: Max.330mm / Max.430mm
Sealing-cutting Length Max: Max.650mm / Max.750mm
Sealing-cutting Thickness: 0.012~0.03mm / 0.012~0.03mm
Capacity: Max.300pcs/minx2 / Max.300pcs/minx2
Power Supply: 8kw / 10kw
Overall Dimension(LxWxH): 7200x1580x1800mm / 7500x1780x1800mm
Machine Weight: 2500kg / 2700kg
